Gas Fireplace Thermocouple vs. Thermopile: Why Your Burner Won’t Turn On – Troubleshooting and Solutions
By Matt Dambrosky, Chimney Doctors
When your gas fireplace refuses to ignite despite the pilot light being on, it can be a source of frustration. Understanding the role of key components like thermocouples and thermopiles is crucial for diagnosing these issues. This guide will delve into the functionality of these components, common issues that cause ignition failures, and effective troubleshooting methods. By identifying the differences between thermocouples and thermopiles, you’ll gain insight into why your burner might not be functioning as expected. Moreover, we will provide actionable repair options and essential safety tips for gas fireplace operation.
Key Takeaways
Most gas fireplace ignition failures with a lit pilot trace back to a faulty thermocouple or thermopile, blocked pilot light, or low gas pressure.
A thermocouple is a single sensor that produces a small millivolt signal to keep the gas valve open, while a thermopile stacks multiple sensors to generate enough voltage to drive the valve directly.
Diagnosing the problem means checking pilot flame cleanliness and steadiness, testing sensor voltage with a multimeter, and verifying gas pressure with a manometer.
Thermocouple replacement typically runs $100-$200, while thermopile replacement runs $150-$300, with cost tied to installation complexity.
Proper venting and correct installation protect thermocouples and thermopiles from premature failure and keep combustion safe and efficient.
Routine cleaning and annual inspection of the pilot light and sensors are the best ways to prevent recurring ignition problems.
Common Issues:
Several problems may arise when a gas fireplace burner fails to turn on. A thorough understanding of common issues can help homeowners troubleshoot effectively.
Faulty Thermocouple: If the thermocouple is defective, it may not sense the pilot flame heat, preventing gas flow to the burner.
Pilot Light Blockage: A blocked pilot light can impede the ignition process, resulting in failure to ignite the burner.
Gas Pressure Issues: Low gas pressure can prevent the burner from receiving sufficient gas, leading to ignition problems.
Understanding these common issues enables a more efficient diagnosis of your gas fireplace’s ignition failure.
Diagnostic Methods:
To pinpoint the exact issue causing your gas fireplace to malfunction, consider the following diagnostic methods:
Inspecting the Thermocouple: Check whether the thermocouple is clean and correctly positioned in the pilot flame.
Checking the Pilot Light: Ensure that the pilot light is burning steadily and is free from debris. A weak flame may indicate a blockage.
Verifying Gas Pressure: Use a manometer to check gas pressure levels. Insufficient pressure could lead to burner failure.
These diagnostic steps can help identify whether the problem lies within the thermocouple, pilot light, or gas supply system.
Repair Options:
Once you have diagnosed the problem with your gas fireplace, there are several repair options available you may consider:
Replacing a Faulty Thermocouple: If the thermocouple is malfunctioning, replacement is a straightforward solution that can restore function.
Cleaning the Pilot Light: Regular maintenance, such as cleaning the pilot light opening, can prevent issues and ensure efficient operation.
Adjusting Gas Pressure: If the gas pressure is too low, adjusting it may resolve the ignition failure without further complications.
Implementing these repair options can help resolve ignition problems effectively, restoring functionality to your fireplace.

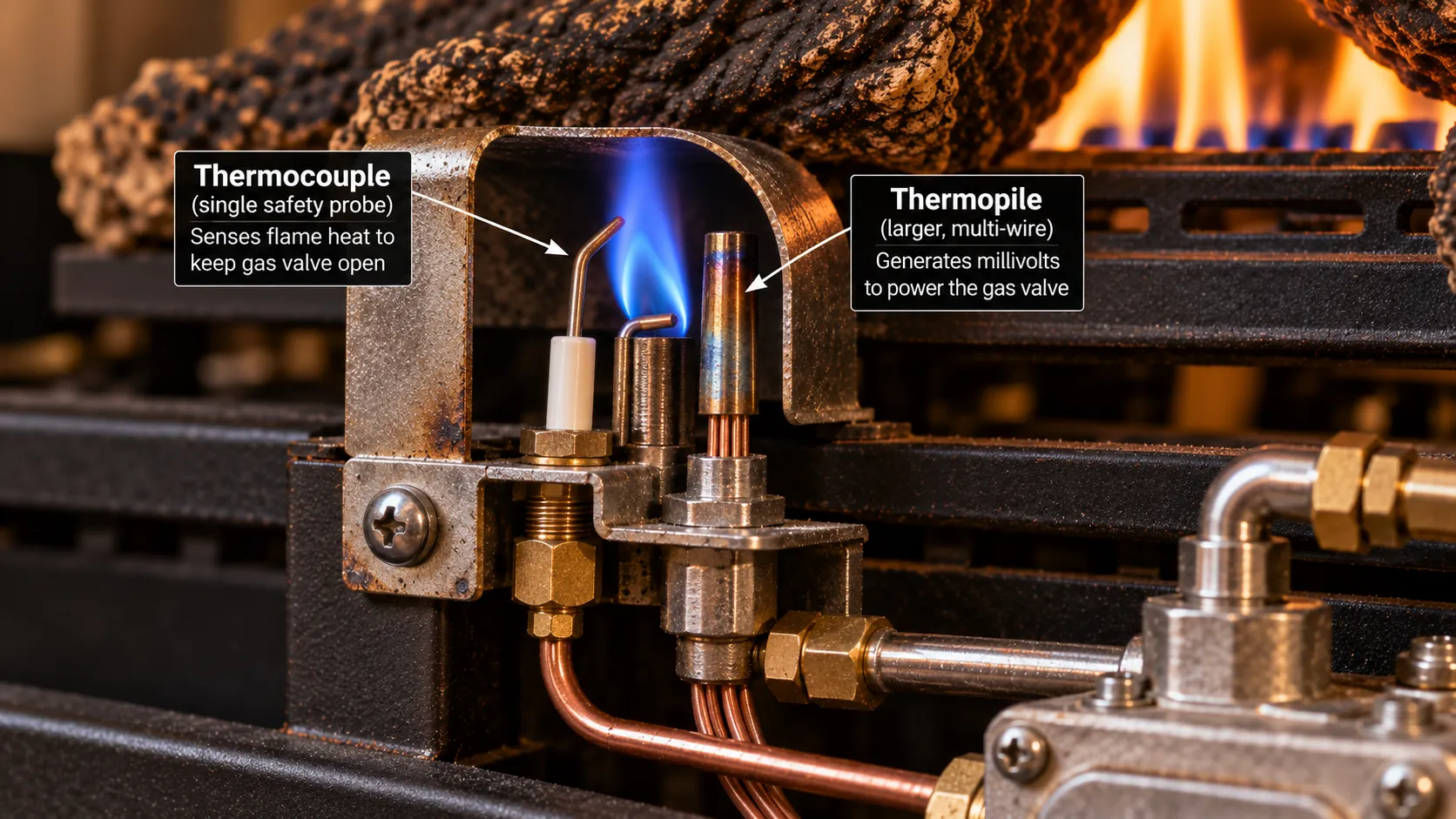

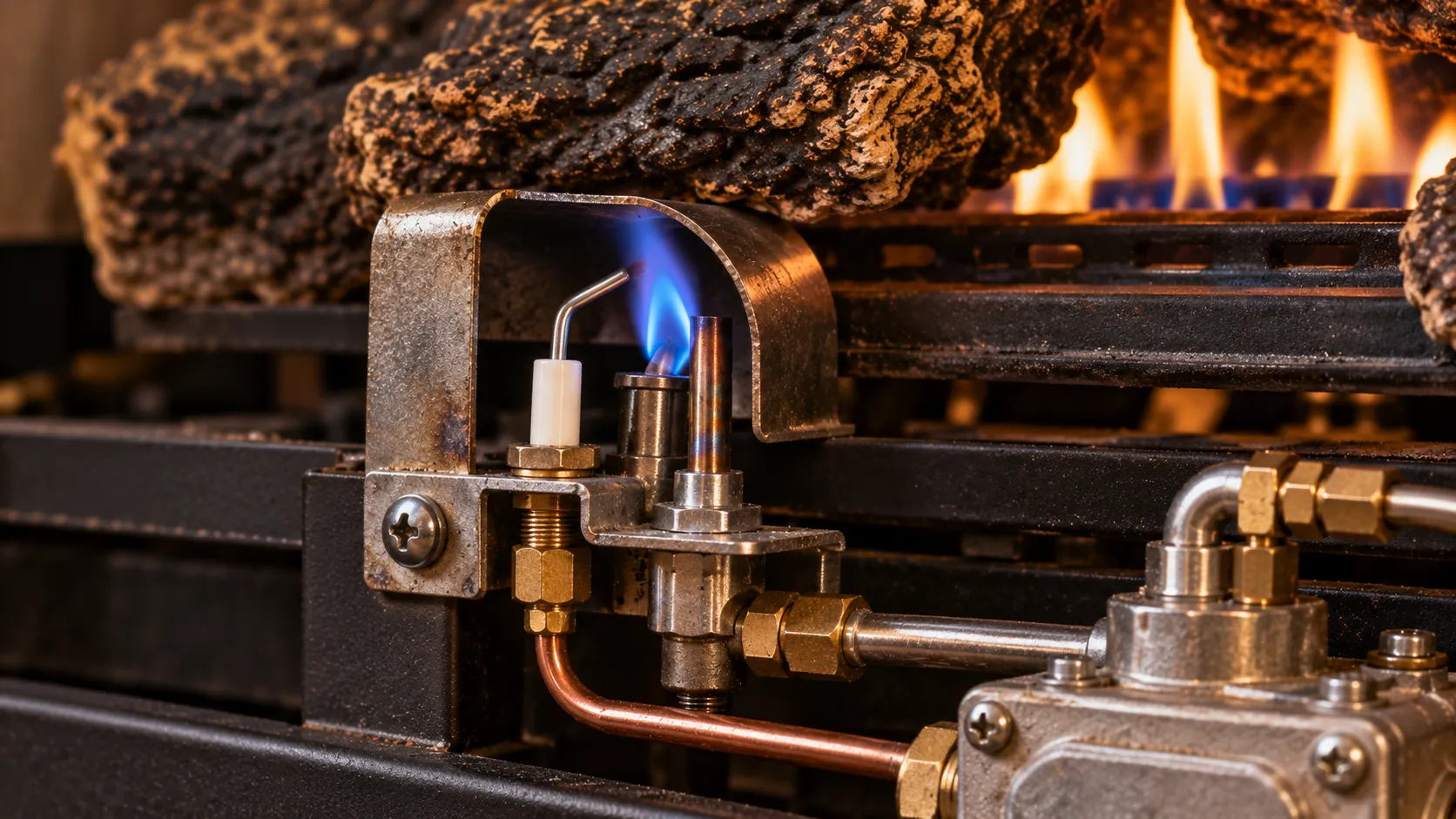

What Is the Difference Between a Thermocouple and a Thermopile in Gas Fireplaces?
Thermocouples and thermopiles serve similar functions in gas fireplaces, yet they have distinct operational mechanisms and benefits.
A thermocouple consists of two different metals joined together that produce a small voltage when heated. This voltage is used to signal the gas valve to open, allowing gas flow. Conversely, a thermopile is a series of thermocouples connected in series or parallel, generating a larger voltage that can operate a gas valve directly. The process of gas fireplace insert repair often involves checking these components for proper function.
This fundamental difference impacts the functionality of each component in relation to flame detection and gas flow management, making it essential for homeowners to understand which component is malfunctioning.
How Does a Thermocouple Detect Pilot Flame Heat?
A thermocouple detects pilot flame heat through thermoelectricity. When heated by the pilot flame, it generates a small voltage that signals the gas valve to remain open. If the pilot light goes out, the thermocouple will cool, causing the voltage to drop and shutting off the gas supply to the burner. This mechanism is crucial for preventing gas leaks and ensuring safety.
How Does a Thermopile Generate Voltage to Control the Gas Valve?
A thermopile produces a higher voltage than a thermocouple because it consists of multiple thermocouples working together. When exposed to the pilot flame, the thermopile generates enough electricity to control the gas valve directly, allowing for more robust flame detection and gas flow management. This capability makes thermopiles particularly effective in applications requiring higher energy demands.
Why Won’t My Gas Fireplace Burner Ignite When the Pilot Light Is On?
Ignition failure, even with a lit pilot light, can stem from various causes.
Blocked Burners: If the burners are obstructed by debris or soot, the gas may not ignite properly.
Clogged Pilot Light: A clogged pilot light can weaken the flame’s ability to ignite the gas from the burner.
Energy Efficiency Concerns: If your gas fireplace is not operating efficiently, the burner may fail to ignite due to insufficient heat or gas delivery.
Identifying these factors can help pinpoint the cause of ignition failure in your gas fireplace.
What Are Common Thermocouple and Thermopile Malfunctions Affecting Ignition?
Thermocouples and thermopiles can experience specific malfunctions that impact their effectiveness in gas fireplaces.
Faulty Components: A malfunctioning thermocouple may fail to provide a signal to the gas valve, while a defective thermopile may not produce sufficient voltage.
Impact of Gas Pressure: Both components rely on appropriate gas pressure to function correctly; irregularities can lead to ignition problems.
Effect of Aging on Performance: Over time, these components may deteriorate, reducing their performance and ability to detect flames reliably.
Awareness of these issues can help homeowners recognize when replacement or maintenance is necessary.
How Can Pilot Flame Problems Cause Burner Not To Light?
Pilot flame issues can severely impact the burner’s ability to ignite successfully.
Importance of Clean Pilot Light: A dirty or blocked pilot light will result in insufficient flame strength, failing to ignite the gas coming from the burner.
How Thermocouple Functionality Can Affect Gas Flow: A malfunctioning thermocouple may not allow gas to flow correctly, causing further ignition issues.
Understanding the critical role of the pilot light helps emphasize the importance of regular maintenance and inspection.
How to Test and Replace a Faulty Thermocouple or Thermopile?
Proper testing and replacement of a faulty thermocouple or thermopile can restore functionality to your gas fireplace.
What Are Step-by-Step Procedures for Testing Thermocouple Function?: Begin by removing the thermocouple from the gas valve and using a multimeter to measure the voltage output. A reading below 25 millivolts may indicate a fault.
How Do You Measure Thermopile Voltage Output and Replace It?: Measure the voltage at the thermopile terminals with a multimeter. If it’s below the required voltage, it may need replacing. Follow the manufacturer’s instructions for safe removal and installation.
These steps can guide homeowners toward effectively resolving ignition issues associated with faulty components.
What Are Cost Considerations for Repairing Gas Fireplace Ignition Components?
Repairing ignition components in a gas fireplace can vary in cost based on several factors.
Average Repair Costs: Replacing a thermocouple generally costs between $100-$200, while thermopile replacements can range from $150-$300, depending on the complexity of the job.
Cost Implications of Component Failures: Prompt maintenance can prevent more significant issues and costs associated with extensive repairs due to neglected components.
Being aware of these costs helps homeowners budget maintenance effectively.
How Do Thermocouple and Thermopile Repair Prices Compare?
These variations highlight the importance of understanding each component’s role in your gas fireplace to make informed decisions regarding repairs.
What Are Energy Efficiency Benefits of Timely Ignition System Repairs?
Timely repairs of ignition systems not only restore function but also enhance energy efficiency in gas fireplaces.
Efficiency Gains: A properly functioning ignition system ensures optimal gas flow and combustion efficiency, leading to lower energy bills.
Cost-Benefit Analysis of Repair vs Neglect: Investing in timely repairs can save significant costs over time by improving the overall efficiency of your gas fireplace.
Considering energy efficiency in repair decisions underscores the long-term value of maintaining your fireplace.
What Safety Tips Should Homeowners Follow When Operating Gas Fireplaces?
Ensuring safety when operating gas fireplaces is of utmost importance.
Safety Practices: Regularly check the pilot light, inspect components for wear, and ensure proper venting to avoid carbon monoxide buildup.
Potential Hazards: Be aware of the risks associated with faulty components, such as gas leaks or fire hazards.
Implementing these safety tips can mitigate risks and enhance the enjoyment of your gas fireplace.
How Does the Thermocouple Prevent Gas Leaks During Pilot Failure?
The thermocouple plays a critical role in safety by preventing gas leaks when the pilot light goes out.
Safety Mechanisms: By shutting off the gas supply when it detects a loss of heat from the pilot flame, the thermocouple significantly reduces the risk of gas leakage and potential hazards.
This vital function underscores the importance of a functioning thermocouple in any gas fireplace system.
What Maintenance Practices Ensure Reliable Thermopile and Thermocouple Performance?
Regular maintenance practices are crucial for ensuring the reliable performance of thermocouples and thermopiles.
Routine Inspections: Schedule annual inspections of your gas fireplace, including checking the thermocouple and thermopile for cleanliness and functionality.
Importance of Cleaning: Keeping the pilot light and surrounding areas clean reduces the risk of blockages, ensuring reliable ignition.
By adhering to these maintenance practices, homeowners can prolong the lifespan and efficiency of their gas fireplace systems.
What Are Common Ignition Problems and How Can They Be Fixed?
Identifying common ignition problems can greatly alleviate frustration and restore functionality to your fireplace.
Identifying Ignition Problems: Symptoms such as inconsistent ignition or flickering flames can indicate issues with the thermocouple, thermopile, or gas supply.
Common Repair Solutions: Replacement of faulty components or routine cleaning can often resolve these issues without the need for a technician.
Awareness of these concerns can empower homeowners to maintain their gas fireplaces effectively.
How to Diagnose Burner Control Failures Linked to Gas Valve Voltage?
Burner control failures often result from voltage issues in the gas valve.
Symptoms of Control Failures: Look for inconsistent burner operation or failure to ignite; these may indicate voltage irregularities.
Voltage Diagnostic Techniques: Using a multimeter, check for proper voltage at the gas valve terminals as a diagnostic method.
These steps provide essential diagnostic tools for homeowners facing burner control issues.
Which Pilot Flame Diagnostics Can Prevent Ignition Failures?
Preventive diagnostics related to pilot flames contribute significantly to reliable ignition.
Common Pilot Flame Issues: Low flame size may indicate improper adjustment or blockage that needs addressing.
Preventive Diagnostics: Regularly check the pilot light’s position and cleanliness to avoid ignition failures.
By prioritizing pilot flame diagnostics, homeowners can prevent future ignition issues in their gas fireplaces.
How Do Gas Fireplace Insert Venting and Installation Impact Ignition System Performance?
The installation and venting of gas fireplace inserts critically impact ignition system performance.
Venting Efficiency: Proper venting ensures effective combustion, allowing for gas flow and ignition. For comprehensive guidance, explore gas fireplace insert maintenance and cleaning, which is often linked to venting performance.
Installation Errors: Incorrect installation can lead to gas flow disturbances, impacting the performance of ignition components. Proper gas fireplace insert installation is crucial.
Being mindful of venting and installation best practices can significantly enhance the reliability of ignition systems.
Why Is Proper Chimney Venting Essential for Gas Burner Operation?
Proper chimney venting is crucial for the efficient operation of gas burners.
Combustion Efficiency: Adequate venting prevents the buildup of harmful gases and enhances overall combustion efficiency.
Health and Safety Risks: Poor venting can lead to carbon monoxide exposure, posing serious health risks to occupants.
Understanding the importance of proper ventilation helps ensure a safe and effective gas fireplace operation.
How Does Correct Installation Prevent Thermocouple and Thermopile Failures?
Installation quality plays a significant role in the longevity of thermocouples and thermopiles.
Best Practices for Installation: Follow manufacturer guidelines to ensure components are correctly positioned for optimal performance.
Avoiding Common Pitfalls: Ensure that all connections are secure to prevent operational failures that can result in costly repairs.
Emphasizing correct installation practices can prevent future issues and extend the lifespan of your gas fireplace components.
Where Can I Find Visual Guides and Videos for Thermocouple and Thermopile Troubleshooting?
Visual guides and videos are invaluable resources for troubleshooting thermocouple and thermopile issues.
Availability of Guides: Numerous online platforms offer detailed visual guides for troubleshooting gas fireplace components, including step-by-step instructions.
Types of Visual Content: Look for video demonstrations that cover testing and replacements comprehensively.
Using these resources can enhance understanding and empower homeowners to tackle common issues confidently.
What Diagrams Illustrate Thermocouple Placement and Wiring?
Accurate diagrams are essential for ensuring correct placement and wiring of thermocouples.
Importance of Accurate Wiring: Correct wiring is crucial for reliable functionality and safety in gas fireplaces.
Where to Find Diagrams: Search reputable HVAC websites or manufacturers for accurate wiring diagrams that illustrate proper thermocouple placement.
Referencing these diagrams can alleviate installation concerns and ensure optimal gas fireplace performance.
Which Videos Demonstrate Testing and Replacement Procedures?
Educational videos are widely available to provide practical guidance on testing and replacement procedures for thermocouples and thermopiles.
Types of Video Content: Look for tutorials detailing specific testing methods and component replacements.
Value of Visual Learning: Engaging with visual content can reinforce learning and enhance troubleshooting skills effectively.
Utilizing these video resources can support homeowners in maintaining their gas fireplace systems successfully.
Conclusion
A gas fireplace burner that won’t light with the pilot on almost always traces back to one of two components: the thermocouple, a single-junction sensor that produces a small millivolt signal and shuts off gas flow the moment it cools, or the thermopile, a stacked set of junctions that generates enough voltage to drive the gas valve directly. Diagnosis follows the same pattern either way — a clean, steady pilot flame, correct gas pressure, and a multimeter reading within spec confirm whether the fault sits in the sensor, the pilot assembly, or the gas supply. Once identified, the fix is usually straightforward: replace a weak thermocouple or thermopile, clear a blocked pilot, or correct gas pressure, with routine inspection keeping both components reliable for years. If your own checks don’t restore ignition, or you’d rather have a certified technician handle the testing and replacement, reach out to Chimney Doctors for gas fireplace insert repair.
